(M1330-06-38) Optimization of Thermoresponsive SNEDDS Formulation Loaded with Dapagliflozin Using Box-Behnken Design Approach: Overcome Manufacturing Challenges

Purpose: Developing a solidified form of liquid self-nanoemulsifying drug delivery system (L-SNEDDS) presents a considerable challenge in pharmaceutical formulation. Therefore, this study aimed to develop a thermoresponsive self-nanoemulsifying drug delivery system (T-SNEDDS) as a promising approach to solidify L-SNEDDS formulation and enhance dapagliflozin dissolution

Methods: Solubility and emulsification studies were performed to select oil and surfactant. Box-Behnken design was used to investigate the influences of three independent variables (pluronic F127 propylene glycol and dapagliflozin concentration) on liquefying temperature and time. Zetasizer was used to measure particle size and zeta potential for optimized T-SNEDDS. The in-vitro dissolution test was performed to compare the dissolution profile of optimized T-SNEDDS with raw drugs and marketed tablets. Imwitor 308 and cremophor EL were selected as oil and surfactant, respectively.

Results: The suggested optimized T-SNEDDS formulation consisted of 8.60% w/w pluronic F127, 10% w/w propylene glycol, and 5% w/w dapagliflozin. The prepared optimized T-SNEDDS had a liquefying temperature of 33.5°C and a liquefying time of 100.3 seconds. In vitro dissolution studies revealed that the optimized T-SNEDDS significantly enhanced dapagliflozin dissolution efficiency (97.4%) compared to the raw drug (65.2%). Moreover, it showed comparable performance to the marketed formulation (90.8%).

Conclusion: The developed T-SNEDDS offers a promising approach for improving the oral delivery of dapagliflozin while addressing manufacturing and scale-up challenges associated with conventional solidification techniques.

References: 1. Awad A, Trenfield SJ, Basit AW. Solid oral dosage forms. Remington: Elsevier; 2021. p. 333-58.
2. Adhikary B, Kumar LA, Sahu BB, Mohapatra M, Satpathy S, Das S, et al. Updates and Challenges of Tablets. Journal of Pharmaceutical Negative Results. 2023:2840-52.
3. Xie B, Liu Y, Li X, Yang P, He W. Solubilization techniques used for poorly water-soluble drugs. Acta Pharmaceutica Sinica B. 2024.
4. Shanthi N, Arora K, Pant H, Soni K, Gupta G, Chandra G, et al. Fortifying SNEDDS with Hybrid Technologies: Present and Future Prospects. Current Nanomedicine. 2024.
5. Harde M, Mallya R. A Comprehensive Review of Self-Nanoemulsifying Systems in the Delivery of Herbal Drugs. Pharmaceutical Nanotechnology. 2024.
6. Kazi M, Shahba AA, Alrashoud S, Alwadei M, Sherif AY, Alanazi FK. Bioactive self-nanoemulsifying drug delivery systems (Bio-SNEDDS) for combined oral delivery of curcumin and piperine. Molecules. 2020;25(7):1703.
7. Inugala S, Eedara BB, Sunkavalli S, Dhurke R, Kandadi P, Jukanti R, et al. Solid self-nanoemulsifying drug delivery system (S-SNEDDS) of darunavir for improved dissolution and oral bioavailability: in vitro and in vivo evaluation. European Journal of Pharmaceutical Sciences. 2015;74:1-10.
8. Tsotsas E. Multiscale approaches to processes that combine drying with particle formation. Drying technology. 2015;33(15-16):1859-71.
9. Zupančič O, Spoerk M, Paudel A. Lipid-based solubilization technology via hot melt extrusion: Promises and challenges. Expert Opinion on Drug Delivery. 2022;19(9):1013-32.
10. Shahba AA, Tashish AY, Alanazi FK, Kazi M. Combined self-nanoemulsifying and solid dispersion systems showed enhanced cinnarizine release in hypochlorhydria/achlorhydria dissolution model. Pharmaceutics. 2021;13(5):627.
11. Schmied F-P, Bernhardt A, Baudron V, Beine B, Klein S. Development and characterization of celecoxib solid self-nanoemulsifying drug delivery systems (S-SNEDDS) prepared using novel cellulose-based microparticles as adsorptive carriers. AAPS PharmSciTech. 2022;23(6):213.
12. Sherif AY, Elzayat EM, Altamimi MA. Optimization of Glibenclamide Loaded Thermoresponsive SNEDDS Using Design of Experiment Approach: Paving the Way to Enhance Pharmaceutical Applicability. Molecules. 2024;29(21):5163.
13. Herat LY, Matthews JR, Ong WE, Rakoczy EP, Schlaich MP, Matthews VB. Determining the role of SGLT2 inhibition with dapagliflozin in the development of diabetic retinopathy. Frontiers in Bioscience-Landmark. 2022;27(12):321.
14. Tang W, Reele S, Hamer‐Maansson J, Parikh S, de Bruin T. Dapagliflozin twice daily or once daily: effect on pharmacokinetics and urinary glucose excretion in healthy subjects. Diabetes, Obesity and Metabolism. 2015;17(4):423-5.
15. Durak A, Olgar Y, Degirmenci S, Akkus E, Tuncay E, Turan B. A SGLT2 inhibitor dapagliflozin suppresses prolonged ventricular-repolarization through augmentation of mitochondrial function in insulin-resistant metabolic syndrome rats. Cardiovascular diabetology. 2018;17:1-17.
16. Vivian EM. Dapagliflozin: A new sodium–glucose cotransporter 2 inhibitor for treatment of type 2 diabetes. American journal of health-system pharmacy. 2015;72(5):361-72.
17. Alruwaili NK, Zafar A, Imam SS, Alharbi KS, Alshehri S, Elsaman T, et al. Formulation of amorphous ternary solid dispersions of dapagliflozin using PEG 6000 and Poloxamer 188: solid-state characterization, ex vivo study, and molecular simulation assessment. Drug Development and Industrial Pharmacy. 2020;46(9):1458-67.
18. Abdelaziz MA, Shaldam M, El-Domany RA, Belal F. Multi-Spectroscopic, thermodynamic and molecular dynamic simulation studies for investigation of interaction of dapagliflozin with bovine serum albumin. Spectrochimica Acta Part A: Molecular and Biomolecular Spectroscopy. 2022;264:120298.
19. Patel P, Patel M. Enhanced oral bioavailability of nintedanib esylate with nanostructured lipid carriers by lymphatic targeting: In vitro, cell line and in vivo evaluation. European Journal of Pharmaceutical Sciences. 2021;159:105715.
20. Pouton CW. Lipid formulations for oral administration of drugs: non-emulsifying, self-emulsifying and ‘self-microemulsifying’drug delivery systems. European journal of pharmaceutical sciences. 2000;11:S93-S8.
21. Pathak K, Raghuvanshi S. Oral bioavailability: issues and solutions via nanoformulations. Clinical pharmacokinetics. 2015;54:325-57.
22. Date AA, Nagarsenker M. Design and evaluation of self-nanoemulsifying drug delivery systems (SNEDDS) for cefpodoxime proxetil. International journal of pharmaceutics. 2007;329(1-2):166-72.
23. Sangitra SN, Pujala RK. Temperature-dependent yield stress and wall slip behaviour of thermoresponsive Pluronic F127 hydrogels. RSC advances. 2024;14(33):23772-84.
24. Marques AC, Costa PC, Velho S, Amaral MH. Injectable poloxamer hydrogels for local cancer therapy. Gels. 2023;9(7):593.
25. Matanović MR, Kristl J, Grabnar PA. Thermoresponsive polymers: Insights into decisive hydrogel characteristics, mechanisms of gelation, and promising biomedical applications. International journal of pharmaceutics. 2014;472(1-2):262-75.
26. Bredikhin AA, Fayzullin RR, Gubaidullin AT, Bredikhina ZA. Intermolecular hydrogen bonding in alpha-hydroxy carboxylic acids crystals: Connectivity, synthons, supramolecular motifs. Crystals. 2022;12(10):1479.
27. Lupu A, Gradinaru LM, Rusu D, Bercea M. Self-healing of Pluronic® F127 hydrogels in the presence of various polysaccharides. Gels. 2023;9(9):719.
28. Khutoryanskiy VV. Hydrogen-bonded interpolymer complexes as materials for pharmaceutical applications. International Journal of Pharmaceutics. 2007;334(1-2):15-26.
29. Liapunov O, Bezugla O, Lyapunov N, Lysokobylka O. Study of the effect of propylene glycol on the properties of poloxamer 338 solutions. ScienceRise: Pharmaceutical Science. 2024(5 (51)):15-27.
30. Hosono N, Masubuchi Y, Furukawa H, Watanabe T. A molecular dynamics simulation study on polymer networks of end-linked flexible or rigid chains. The Journal of chemical physics. 2007;127(16).
31. Floriano MA, Firetto V, Panagiotopoulos AZ. Effect of stiffness on the phase behavior of cubic lattice chains. Macromolecules. 2005;38(6):2475-81.
32. Elgart A, Cherniakov I, Aldouby Y, Domb AJ, Hoffman A. Improved oral bioavailability of BCS class 2 compounds by self nano-emulsifying drug delivery systems (SNEDDS): the underlying mechanisms for amiodarone and talinolol. Pharmaceutical research. 2013;30:3029-44.
33. Baloch J, Sohail MF, Sarwar HS, Kiani MH, Khan GM, Jahan S, et al. Self-nanoemulsifying drug delivery system (SNEDDS) for improved oral bioavailability of chlorpromazine: in vitro and in vivo evaluation. Medicina. 2019;55(5):210.

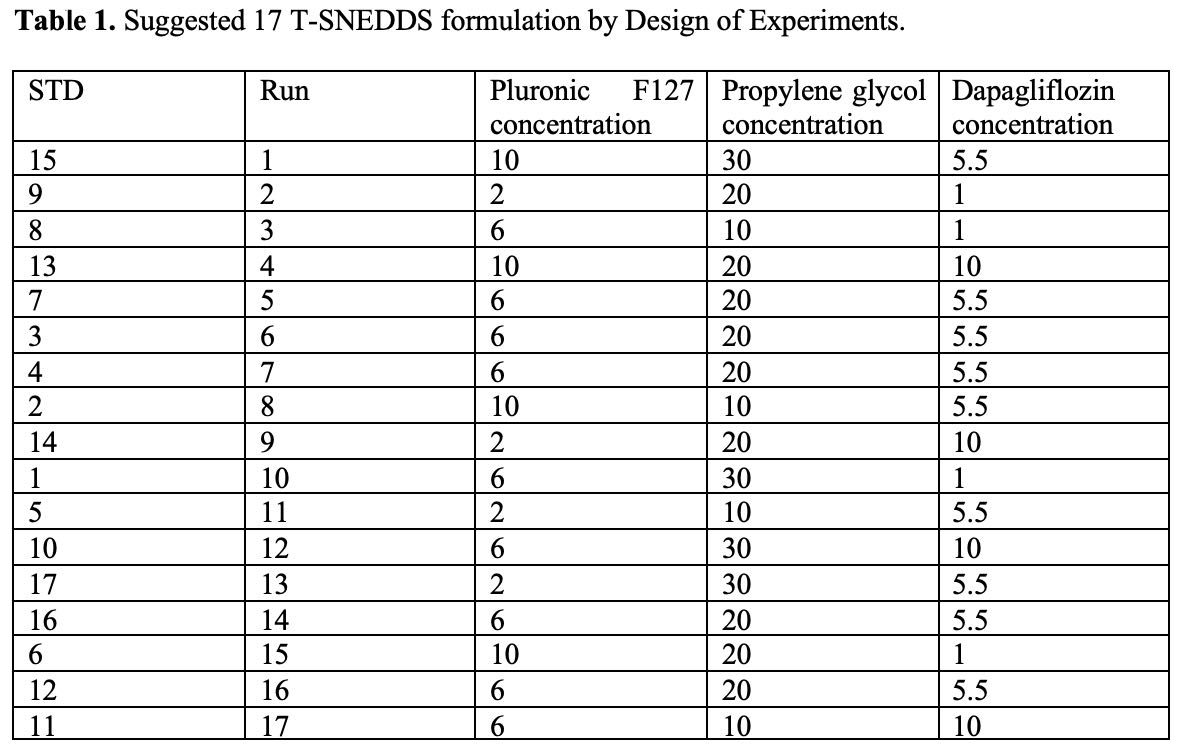

Suggested 17 T-SNEDDS formulation by Design of Experiments.

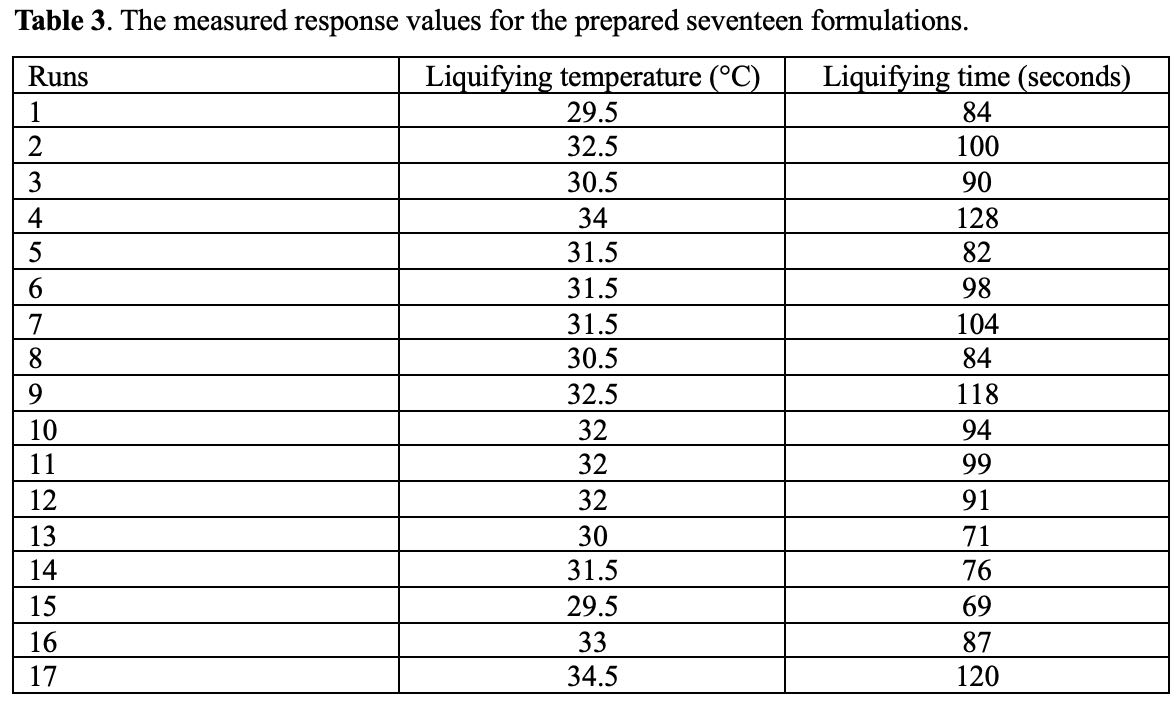

The measured response values for the prepared seventeen formulations

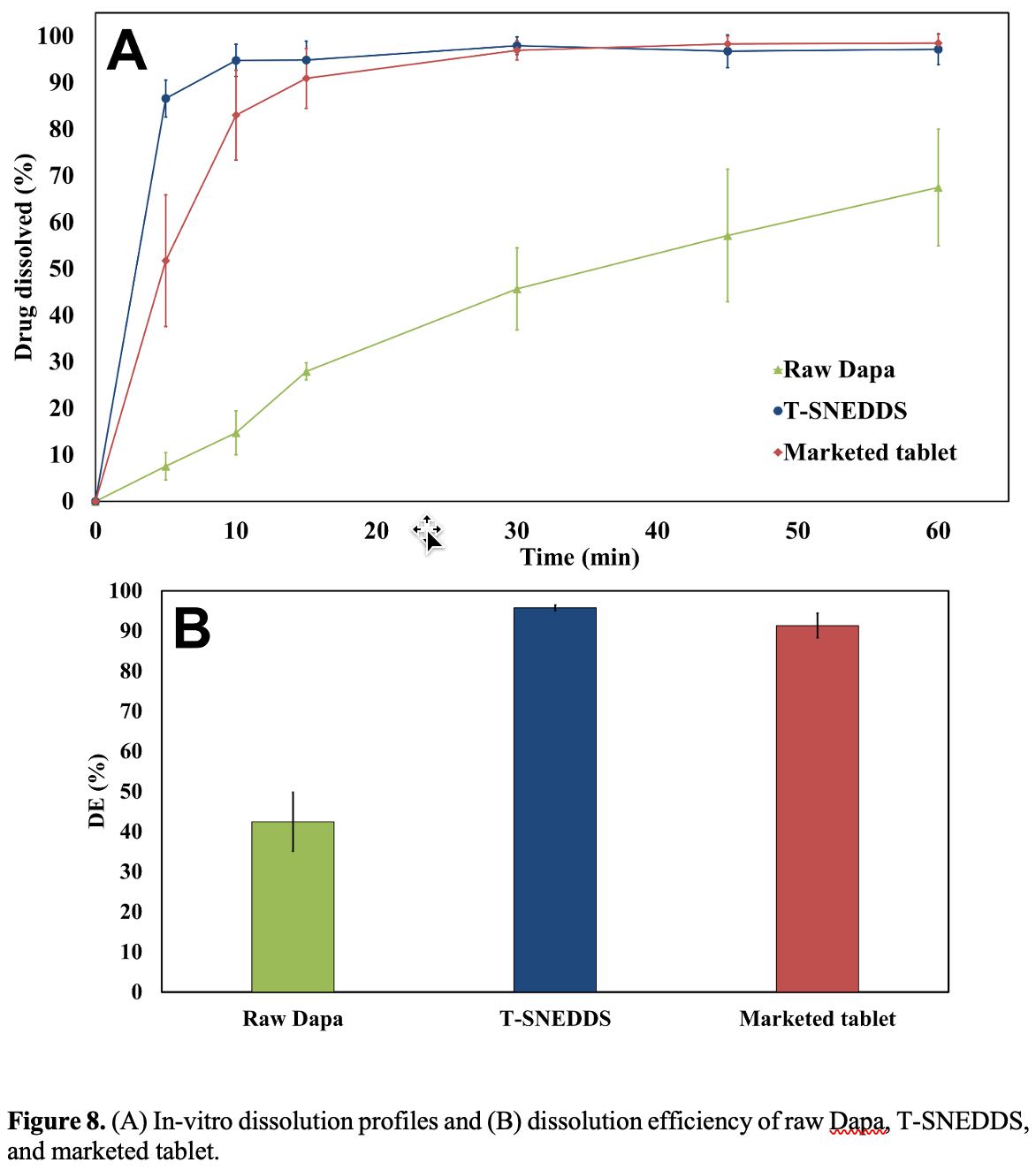

(A) In-vitro dissolution profiles and (B) dissolution efficiency of raw Dapa, T-SNEDDS, and marketed tablet.
