(W0930-03-20) Formulation of Freeze-Dried Self-Emulsifying Dual Oral Drug Delivery Systems in the Treatment of Breast Cancer

Purpose: Breast cancer is the third-leading cause of cancer-related deaths in women in the United States. Treatment options for breast cancer may include chemotherapy which involves the use of very potent but toxic medications, which are associated with severe adverse reactions that may further exacerbate the patient’s condition and in some cases result in death. Additionally, barriers to oral bioavailability of chemotherapies including the destabilizing acidic and enzymatic environment in the gut, poor absorption across the intestinal epithelium and the potential for hepatic first-pass metabolism limit the utility of oral administration. Combinatorial regimen involving the use of medications with different mechanisms of action have emerged as the standard treatment approach in cancer treatment. The current study combines the versatility of a self-emulsifying drug delivery system (SEDD) to entrap hydrophilic (doxorubicin; siRNA) and lipophilic (ellipticine) either separately and in combination to facilitate systemic exposure following oral administration via mannose receptor-mediated lymphatic uptake, thereby circumventing the hepatic portal system and the associated first-pass effect.

Methods: Four SEDD formulations were prepared using different ratios of Labrasol, Caproyl 90, Labrafac PG, Gellucire 44/14 and water. The optimization of the formulation was done using the pseudo ternary phase plot for determine the effective surfactant-to-oil ratios. The resulting oil and surfactant mix (i.e., oil phase) containing ellipticine was dispersed in an aqueous phase containing doxorubicin form a primary water-in-oil (w/o) emulsion. The primary emulsion then dispersed in an aqueous bulk phase containing mannosamine to form water-in-oil-in-water (w/o/w) double emulsion. The entire emulsification process was carried out in keeping with the goal of achieving self-emulsification under passive mixing condition by gentle agitation without the application of high shear. Solid dispersible formulations of the SEDD containing doxorubicin and ellipticine were obtained by subjecting the emulsions to freeze drying (18-hour cycle using Labconco FreeZone Benchtop Freeze-Dryer connected to an Edwards RV3 vacuum pump). The optimized liquid and freeze-dried formulations were characterized for stability, size and polydispersity (PDI). Thermal behavior and interactions of the lipid excipients were also investigated by differential scanning calorimetry, as well as the drug release, transcellular permeation and intracellular uptake profiles of the SEDD.

Results: Optimized ratios of Labrasol, Labrafac PG, Gelucire, and Capryol 90 faciliated the formation for stable liquid and freeze-dried w/o/w SEDD formulations. Aqueous-to-oil phase ratios (1:9, 2:8, 3:7, and 4:6) were evaluated, with 1:9 and 2:8 producing stable primary w/o emulsions. These were used to prepare w/o/w emulsions, incorporating sucrose-mannosamine as a lyoprotectant-targeting ligand complex in the external aqueous phase. Both 1:9 and 2:8 internal-to-external phase ratios formed stable emulsions, with the 2:8 ratio selected for final SEDDS development. Micrographs of the SEDD dispersions captured using an EVOS M7000 Imaging System confirmed the formation of a triphasic dispersed system having an inner water phase encapsulated within the oil phase, surrounded by an outer water phase, forming a multiple-layer water-in-oil-in-water (w/o/w) emulsion. Stable emulsification was achieved for all formulation types. SEDDs ranged in size and PDI of 90 – 347 nm, 0.005 - 0.336 respectively. Thermal analysis showed the formation of amorphous mixtures resulting from physical mixtures and freeze-dried formulations, with sustained release characteristics. Efficient cellular uptake was also observed with all four formulation types demonstrated from fluorescence micrographs.

Conclusion: A double-emulsion lipid-based self-emulsifying drug delivery (SEDD) formulation, surface-modified with mannosamine will be stable and capable of dual drug loading and facilitate oral bioavailability of both hydrophilic and lipophilic drugs through lymphatic uptake.

References: Ahadian, S., Finbloom, J. A., Mofidfar, M., Diltemiz, S. E., Nasrollahi, F., Davoodi, E., Hosseini, V., Mylonaki, I., Sangabathuni, S., Montazerian, H., Fetah, K., Nasiri, R., Dokmeci, M. R., Stevens, M. M., Desai, T. A., & Khademhosseini, A. (2020). Micro and nanoscale technologies in oral drug delivery. Adv Drug Deliv Rev, 157, 37-62. https://doi.org/10.1016/j.addr.2020.07.012
Andey, T., Patel, A., Marepally, S., Chougule, M., Spencer, S. D., Rishi, A. K., & Singh, M. (2016). Formulation, Pharmacokinetic, and Efficacy Studies of Mannosylated Self-Emulsifying Solid Dispersions of Noscapine. PLoS One, 11(1), e0146804. https://doi.org/10.1371/journal.pone.0146804
Aspelund, A., Robciuc, M. R., Karaman, S., Makinen, T., & Alitalo, K. (2016). Lymphatic System in Cardiovascular Medicine. Circulation Research, 118(3), 515-530. https://doi.org/10.1161/CIRCRESAHA.115.306544
Aziz, A., Zaman, M., Khan, M. A., Jamshaid, T., Butt, M. H., Hameed, H., Rahman, M. S. U., & Shoaib, Q.-u.-A. (2024). Preparation and Evaluation of a Self-Emulsifying Drug Delivery System for Improving the Solubility and Permeability of Ticagrelor. ACS Omega, 9(9), 10522-10538. https://doi.org/10.1021/acsomega.3c08700
Bachhav, S. S., Dighe, V. D., Kotak, D., & Devarajan, P. V. (2017). Rifampicin Lipid-Polymer hybrid nanoparticles (LIPOMER) for enhanced Peyer’s patch uptake. International Journal of Pharmaceutics, 532(1), 612-622. https://doi.org/https://doi.org/10.1016/j.ijpharm.2017.09.040
Baldi, A., Chaudhary, M., Sethi, S., Abhiav, Chandra, R., & Madan, J. (2018). Armamentarium of nanoscaled lipid drug delivery systems customized for oral administration: In silico docking patronage, absorption phenomenon, preclinical status, clinical status and future prospects. Colloids Surf B Biointerfaces, 170, 637-647. https://doi.org/10.1016/j.colsurfb.2018.06.061
Callender, S. (2020). Development of a Novel Microemulsion System for the Simultaneous Delivery of Multiple Hydrophilic and Hydrophobic Active Pharmaceutical Ingredients (APIs)
de Oliveira, M. C., & Bruschi, M. L. (2022). Self-Emulsifying Systems for Delivery of Bioactive Compounds from Natural Origin. AAPS PharmSciTech, 23(5), 134. https://doi.org/10.1208/s12249-022-02291-z
Feeney, O. M., Crum, M. F., McEvoy, C. L., Trevaskis, N. L., Williams, H. D., Pouton, C. W., Charman, W. N., Bergström, C. A. S., & Porter, C. J. H. (2016). 50years of oral lipid-based formulations: Provenance, progress and future perspectives. Adv Drug Deliv Rev, 101, 167-194. https://doi.org/10.1016/j.addr.2016.04.007
Gao, P., Jiang, Z., Luo, Q., Mu, C., Cui, M., & Yang, X. (2021). Preparation and Evaluation of Self-emulsifying Drug Delivery System (SEDDS) of Cepharanthine. AAPS PharmSciTech, 22(7), 245. https://doi.org/10.1208/s12249-021-02085-9
Gedawy, A., Martinez, J., Al-Salami, H., & Dass, C. R. (2018). Oral insulin delivery: existing barriers and current counter-strategies. J Pharm Pharmacol, 70(2), 197-213. https://doi.org/10.1111/jphp.12852
Gleeson, J., Fein, K., & Whitehead, K. (2021). Oral delivery of peptide therapeutics in infants: Challenges and opportunities. Advanced Drug Delivery Reviews, 173. https://doi.org/10.1016/j.addr.2021.03.011
Gursoy, R. N., & Benita, S. (2004). Self-emulsifying drug delivery systems (SEDDS) for improved oral delivery of lipophilic drugs. Biomed Pharmacother, 58(3), 173-182. https://doi.org/10.1016/j.biopha.2004.02.001
Irache, J. M., Salman, H. H., Gamazo, C., & Espuelas, S. (2008). Mannose-targeted systems for the delivery of therapeutics. Expert Opinion on Drug Delivery, 5(6), 703-724. https://doi.org/10.1517/17425247.5.6.703
Khan, F., Islam, M. S., Roni, M. A., & Jalil, R. U. (2012). Systematic development of self-emulsifying drug delivery systems of atorvastatin with improved bioavailability potential. Sci Pharm, 80(4), 1027-1043. https://doi.org/10.3797/scipharm.1201-06
Khudhair, H., Gamazo, C., Campanero, M., & Irache, J. (2006). Bioadhesive Mannosylated Nanoparticles for Oral Drug Delivery. Journal of nanoscience and nanotechnology, 6, 3203-3209. https://doi.org/10.1166/jnn.2006.445
Klitgaard, M., Müllertz, A., & Berthelsen, R. (2021). Estimating the Oral Absorption from Self-Nanoemulsifying Drug Delivery Systems Using an In Vitro Lipolysis-Permeation Method. Pharmaceutics, 13(4).
Koetting, M. C., Guido, J. F., Gupta, M., Zhang, A., & Peppas, N. A. (2016). pH-responsive and enzymatically-responsive hydrogel microparticles for the oral delivery of therapeutic proteins: Effects of protein size, crosslinking density, and hydrogel degradation on protein delivery. J Control Release, 221, 18-25. https://doi.org/10.1016/j.jconrel.2015.11.023
Miskolczy, Z., Biczók, L., & Jablonkai, I. (2012). Comment on “Dual Fluorescence of Ellipticine: Excited State Proton Transfer from Solvent versus Solvent Mediated Intramolecular Proton Transfer”. The Journal of Physical Chemistry A, 116(2), 899-900. https://doi.org/10.1021/jp209762w
Morais, A., Xavier-Junior, F. H., Alencar, É., Melo, C., Santos, N., Silva-Júnior, A., Barratt, G., & Egito, S. (2018). Optimization of the freeze-drying process for microemulsion systems. Drying Technology, 37, 1-12. https://doi.org/10.1080/07373937.2018.1536883
Mousavifar, L., Lewicky, J., Taponard, A., Bagul, R., Rivat, M., Abdullayev, S., Martel, A., Fraleigh, N., Nakamura, A., Veyrier, F., Le, H.-T., & Roy, R. (2022). Synthesis & Evaluation of Novel Mannosylated Neoglycolipids for Liposomal Delivery System Applications. Pharmaceutics, 14, 2300. https://doi.org/10.3390/pharmaceutics14112300
Mu, H., Holm, R., & Müllertz, A. (2013). Lipid-based formulations for oral administration of poorly water-soluble drugs. Int J Pharm, 453(1), 215-224. https://doi.org/10.1016/j.ijpharm.2013.03.054
Pandya, P., Giram, P., Bhole, R. P., Chang, H.-I., & Raut, S. Y. (2021). Nanocarriers based oral lymphatic drug targeting: Strategic bioavailability enhancement approaches. Journal of Drug Delivery Science and Technology, 64, 102585. https://doi.org/https://doi.org/10.1016/j.jddst.2021.102585
Pawde, D. M., Viswanadh, M. K., Mehata, A. K., Sonkar, R., Narendra, Poddar, S., Burande, A. S., Jha, A., Vajanthri, K. Y., Mahto, S. K., Azger Dustakeer, V. N., & Muthu, M. S. (2020). Mannose receptor targeted bioadhesive chitosan nanoparticles of clofazimine for effective therapy of tuberculosis. Saudi Pharm J, 28(12), 1616-1625. https://doi.org/10.1016/j.jsps.2020.10.008
Rahman, M. A., Hussain, A., Hussain, M. S., Mirza, M. A., & Iqbal, Z. (2013). Role of excipients in successful development of self-emulsifying/microemulsifying drug delivery system (SEDDS/SMEDDS). Drug Dev Ind Pharm, 39(1), 1-19. https://doi.org/10.3109/03639045.2012.660949
Rochelle, A., Alencar, É., Xavier-Junior, F. H., Melo, C., Rodrigues Marcelino, H., Barratt, G., Fessi, H., Egito, S., & Elaissari, A. (2016). Freeze-drying of emulsified systems: A review. International Journal of Pharmaceutics, 503. https://doi.org/10.1016/j.ijpharm.2016.02.047
Salawi, A. (2022). Self-emulsifying drug delivery systems: a novel approach to deliver drugs. Drug Deliv, 29(1), 1811-1823. https://doi.org/10.1080/10717544.2022.2083724
Vieira, A., Chaves, L., Pinheiro, M., Ferreira, D., Sarmento, B., & Reis, S. (2016). Design and statistical modeling of mannose-decorated dapsone-containing nanoparticles as a strategy of targeting intestinal M-cells. International Journal of Nanomedicine, 11, 2601. https://doi.org/10.2147/IJN.S104908
Wright, P. B., McDonald, E., Bravo-Blas, A., Baer, H. M., Heawood, A., Bain, C. C., Mowat, A. M., Clay, S. L., Robertson, E. V., Morton, F., Nijjar, J. S., Ijaz, U. Z., Milling, S. W. F., & Gaya, D. R. (2021). The mannose receptor (CD206) identifies a population of colonic macrophages in health and inflammatory bowel disease. Scientific Reports, 11(1), 19616. https://doi.org/10.1038/s41598-021-98611-7

Acknowledgements: None

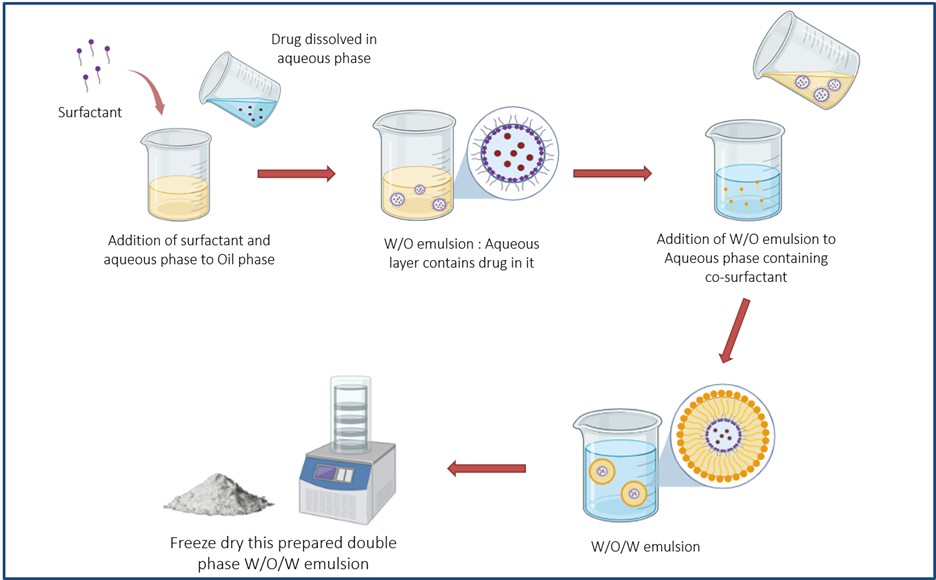

Method of preparation of freeze-dried double emulsion SEDDS
